Offline total HCHO column

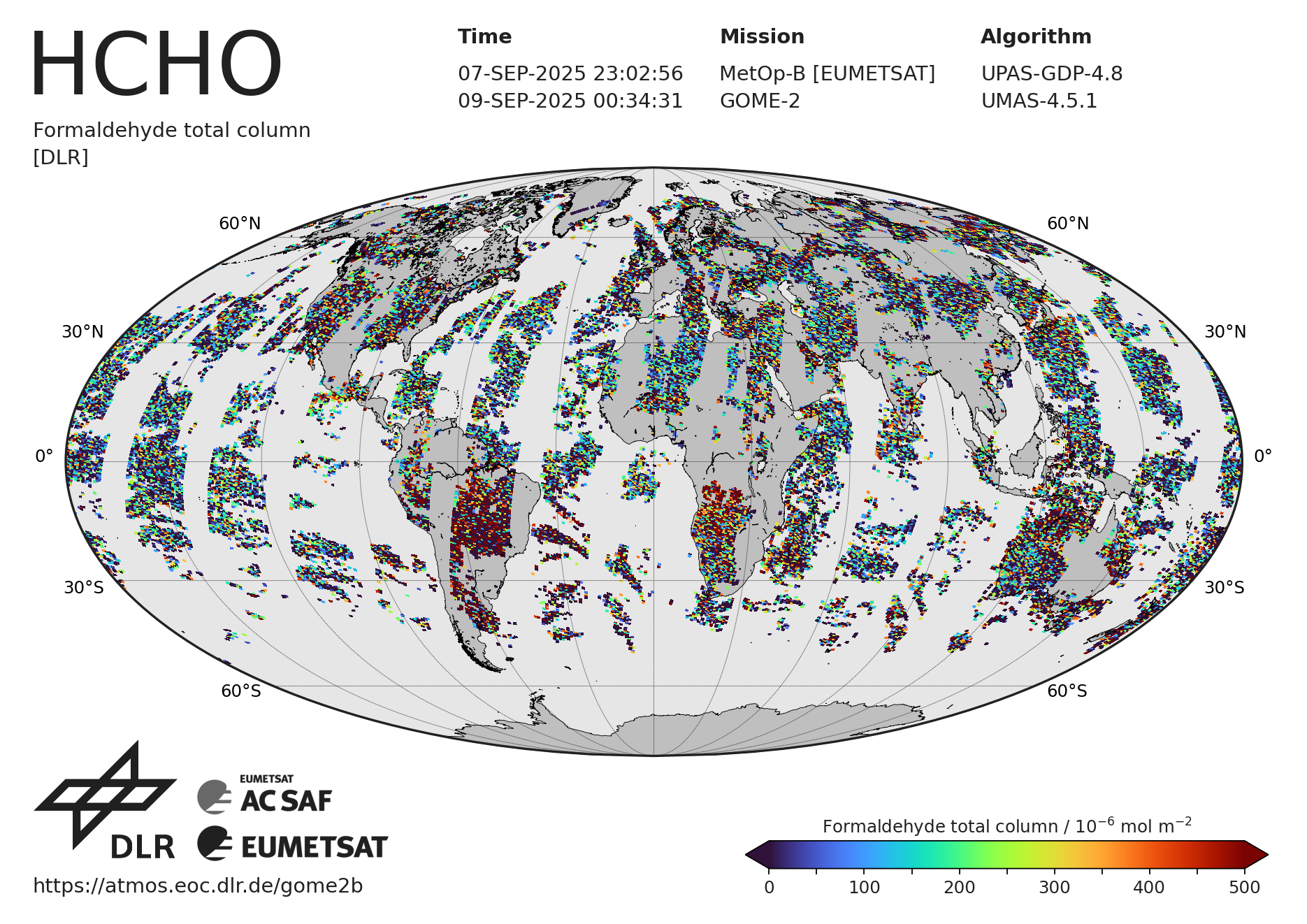

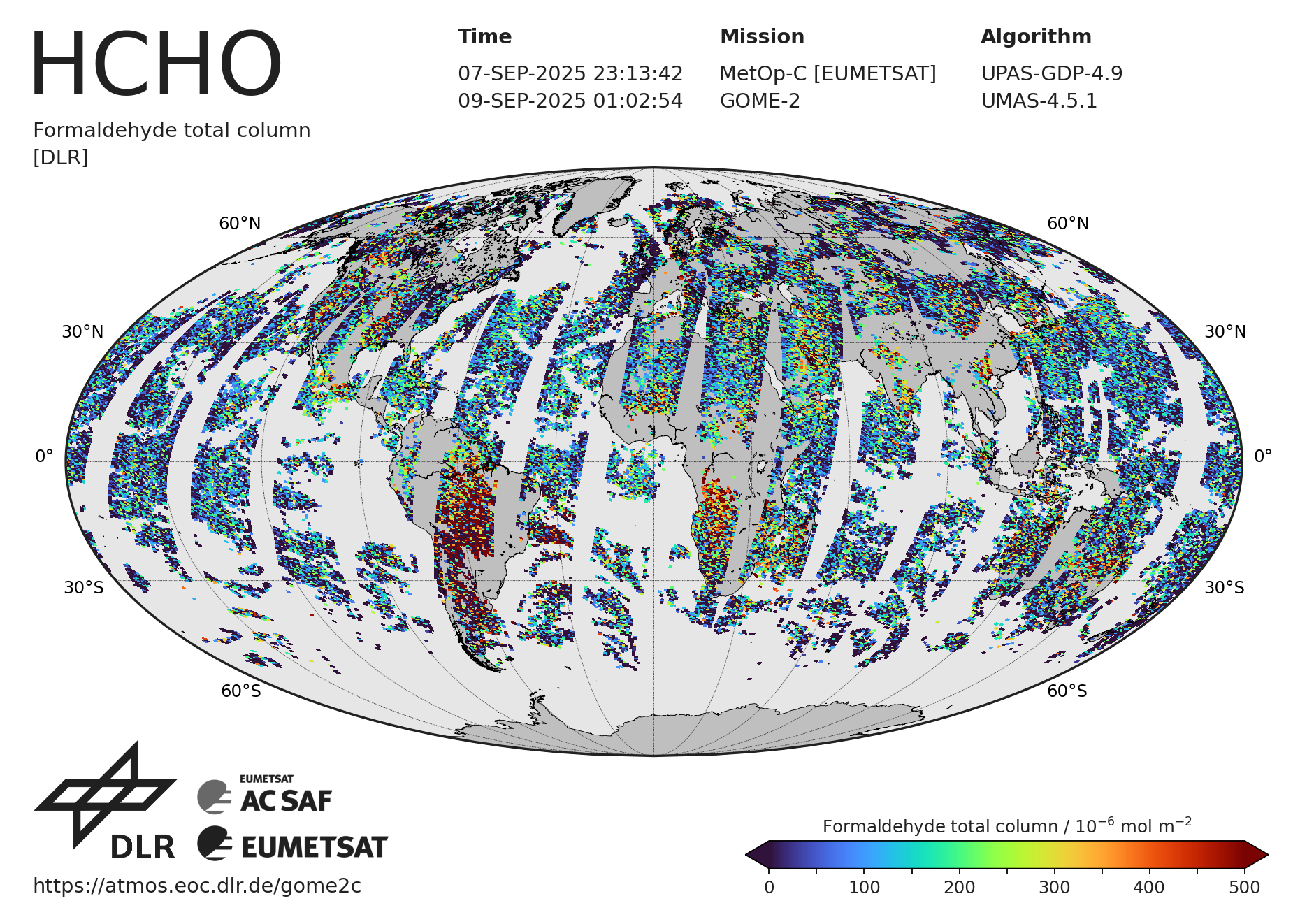

Composite offline images

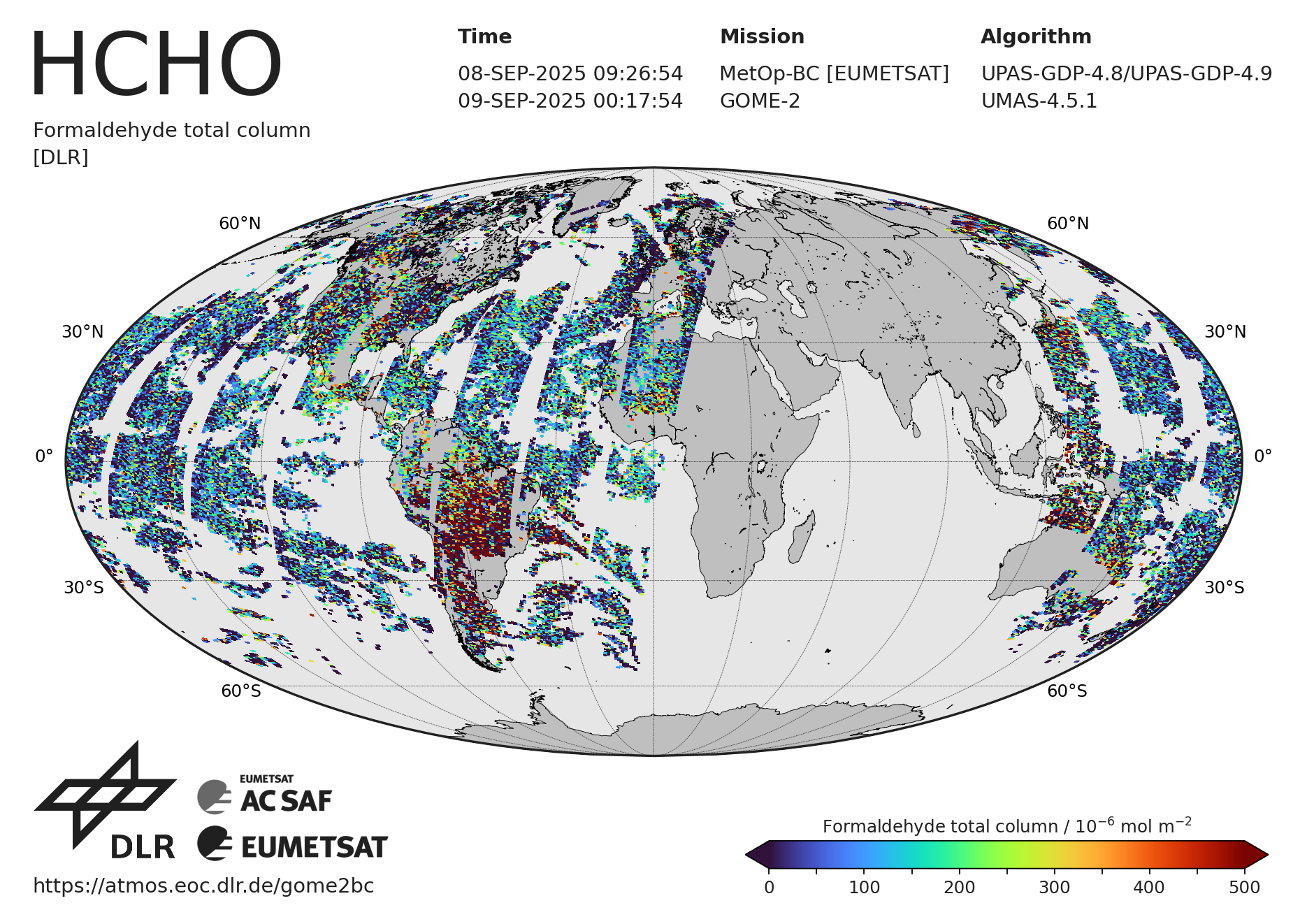

NOTE: Metop-B+C image is for demonstrational purposes only, such multi-satellite product is not processed or disseminated.Image gallery
Offline total HCHO column product provides information about vertical column densities of formaldehyde in the atmosphere.
Offline. The product is available to users in 15 days from sensing. Typical delay is 2-3 days.
The retrieval of the product is based on GOME-2 (ir)radiance measurements in the wavelength region of 328.5-346 nm.
DLR generates vertical column products with Universal Processor for UV/VIS Atmospheric Spectrometers (UPAS), inside which the GOME Data Processor (GDP) operational algorithm is the baseline algorithm for the trace gas column retrievals from GOME-2.
The latest GDP 4.8/4.9 uses an optimised DOAS (Differential Optical Absorption Spectroscopy) algorithm to determine the trace gas slant column. The DOAS slant column fitting is followed by Air Mass Factor (AMF) conversions to generate vertical columns.
Units and spatial resolution
HCHO columns are given as densitites (molecules/cm2).
GOME-2/Metop-A has 24 forward-scan pixels with a nominal resolution of 40 km × 40 km, and 8 back-scan pixels with a nominal resolution of 120 km × 40 km.
GOME-2/Metop-B and GOME-2/Metop-C have 24 forward-scan pixels with a nominal resolution of 80 km × 40 km, and 8 back-scan pixels with a nominal resolution of 240 km × 40 km.
Both forward- and back-scan pixels are processed and written to the products.
This product is validated by Belgian Institute for Space Aeronomy (BIRA-IASB). The validation is based on an end-to-end approach, that has been developed to evaluate independently all critical components of the level-1-to-2 retrieval chain, using correlative observations performed by ground-based and satellite instruments. Visit BIRA HCHO validation page for further information.
Online quality monitoring
The product quality is constantly monitored by BIRA-IASB. The online monitoring is based on TBD. Visit BIRA quality assessment page for further information.
Archiving and dissemination
This product is archived at the DLR and available via offline data access page. Upon request, products can be directly pushed to dedicated FTP servers located at the users' premises.
The product is delivered in HDF5 format, each file containing one satellite orbit (sunlit portion).
Algorithm version information
|Time period||GOME-2 / Metop-A||GOME-2 / Metop-B||GOME-2 / Metop-C|
|04.01.2007 – 15.07.2013||GDP 4.6||N.A.||N.A.|
|15.07.2013 - 15.10.2016||GDP 4.7||GDP 4.7||N.A.|
|15.10.2016 - 16.01.2019||GDP 4.8||GDP 4.8||N.A.|
|16.01.2019 onwards||GDP 4.8||GDP 4.8||GDP 4.9|
Important algorithm changes in GDP 4.8
- Improved retrieval algorithms and quality flags
- HCHO: improved algorithm (two-step DOAS approach), provision of Averaging Kernels
- Cloud algorithm improvements (OCRA & ROCINN)
- Product user manual
- Algorithm theoretical basis document
- Validation report (Metop-A/B)
- Validation report (Metop-C)
