Near real-time total SO2 column
Composite images of the latest overpasses
NOTE: Metop-B+C image is for demonstrational purposes only, such multi-satellite product is not processed or disseminated.
Metop-B

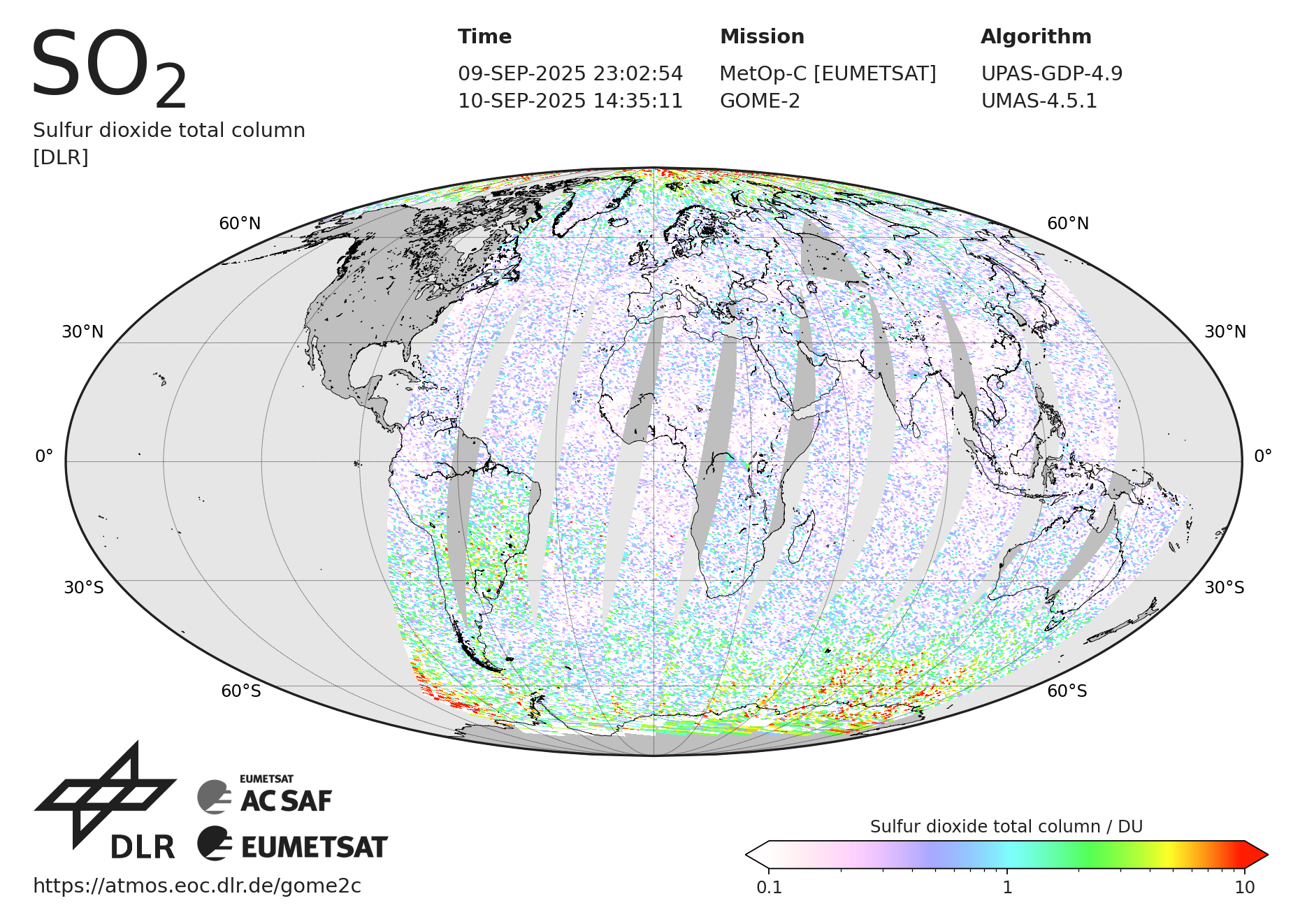

Metop-C

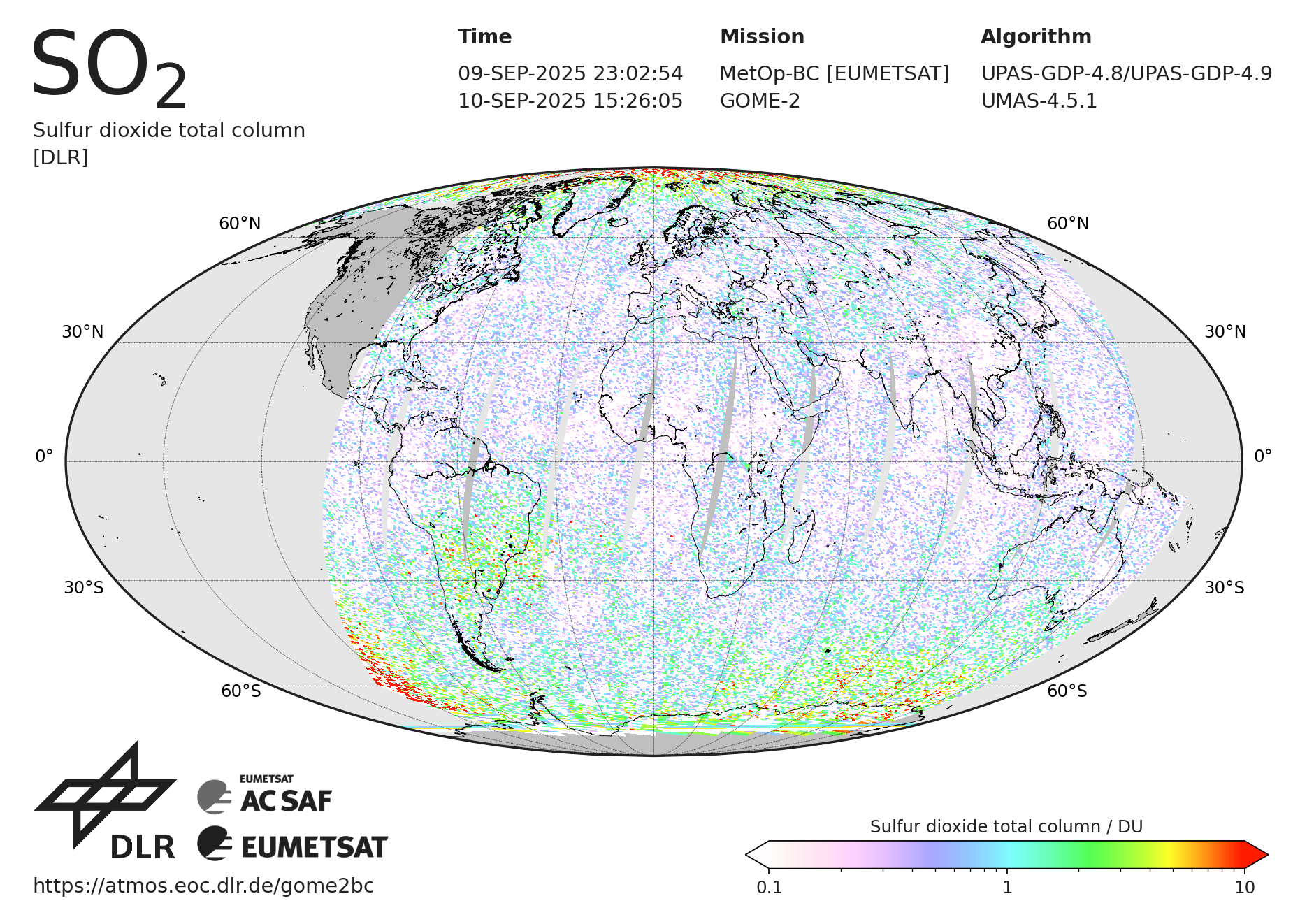

Metop-B+C
Description
Near real-time total SO2 column product provides information about vertical column densities of the sulfur dioxide in the atmosphere.
Type
Near real-time. Based on product requirements, the product files must be available to users in three hours from sensing.
Theoretical basis
The retrieval of the product is based on GOME-2 (ir)radiance measurements in the wavelength region of 315-326 nm.
Processing
DLR generates vertical column products with Universal Processor for UV/VIS Atmospheric Spectrometers (UPAS), inside which the GOME Data Processor (GDP) operational algorithm is the baseline algorithm for the trace gas column retrievals from GOME-2.
The latest GDP 4.8/4.9 uses an optimised DOAS (Differential Optical Absorption Spectroscopy) algorithm to determine the trace gas slant column. The DOAS slant column fitting is followed by Air Mass Factor (AMF) conversions to generate vertical columns.
Units and spatial resolution
SO2 columns are given in Dobson Units (DU).
GOME-2/Metop-A has 24 forward-scan pixels with a nominal resolution of 40 km × 40 km, and 8 back-scan pixels with a nominal resolution of 120 km × 40 km.
GOME-2/Metop-B and GOME-2/Metop-C have 24 forward-scan pixels with a nominal resolution of 80 km × 40 km, and 8 back-scan pixels with a nominal resolution of 240 km × 40 km.
Both forward- and back-scan pixels are processed and written to the products.
Validation
This product is validated by Belgian Institute for Space Aeronomy (BIRA-IASB). The validation is based on an end-to-end approach, that has been developed to evaluate independently all critical components of the level-1-to-2 retrieval chain, using correlative observations performed by ground-based and satellite instruments. Visit BIRA SO2 validation page for further information.
Online quality monitoring
The product quality is constantly monitored by BIRA-IASB. The online monitoring is based on TBD. Visit BIRA quality assessment page for further information.
Dissemination
File format
This product is available in two formats: HDF5 and BUFR (only BUFR via GTS). Each file contains one PDU (Product Dissemination Unit), equal to three minutes of satellite data.
Algorithm version information
| Time period | GOME-2 / Metop-A | GOME-2 / Metop-B | GOME-2 / Metop-C |
|---|---|---|---|
| 04.01.2007 – 15.07.2013 | GDP 4.6 | N.A. | N.A. |
| 15.07.2013 - 27.10.2016 | GDP 4.7 | GDP 4.7 | N.A. |
| 27.10.2016 - 01.05.2020 | GDP 4.8 | GDP 4.8 | N.A. |
| 01.05.2020 onwards | GDP 4.8 | GDP 4.8 | GDP 4.9 |
Important algorithm changes in GDP 4.8
- Improved retrieval algorithms and quality flags
- SO2: improved DOAS settings, new algorithm for volcano activity detection, additional SO2 column retrieval for anthropogenic emission scenario
- Cloud algorithm improvements (OCRA & ROCINN)
Documents
- Product user manual
- Algorithm theoretical basis document
- Validation report (Metop-A/B)
- Validation report (Metop-C)
GOME-2 pages at DLR: ATMOS
